If you are looking for documentation, go to our Document Library

Filter by valve type

Pigging station

Accessories and devices for pigging systems

Pigging station

Secured stop station for double-wall high pressure pigging system

Specific pigging system

According to production constraints and the nature of the product, bespoke pigging systems can be studied on demand. These specific solutions comply with the highest sanitary requirements.

See the product

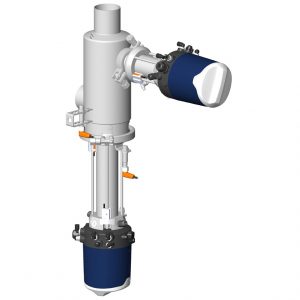

Starmotion in-line cleaning station to be welded with Sorio control top

Starmotion pigging system

Pigging systems allow the residual mass to be recovered in the production lines. The Starmotion pigging system developed by Definox is modular and easily adaptable to all process types.

See the product

Accessories and devices for pigging systems

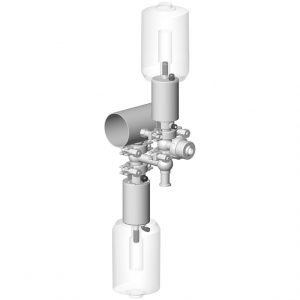

Air push module for pigging system

Accessories and devices for pigging systems

To facilitate the use of pigging stations and simplify their integration into existing process lines, numerous accessories and complimentary devices are available.

See the product

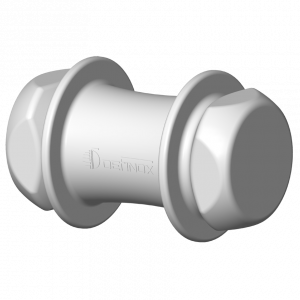

One-piece pig

Pig for pigging system

In order to handle most pigging situations, Definox offers two types of pigs. One-piece pigs are particularly adapted to a utilization on sensitive products. Dismantable pigs are used in numerous fluids processes.

See the product
