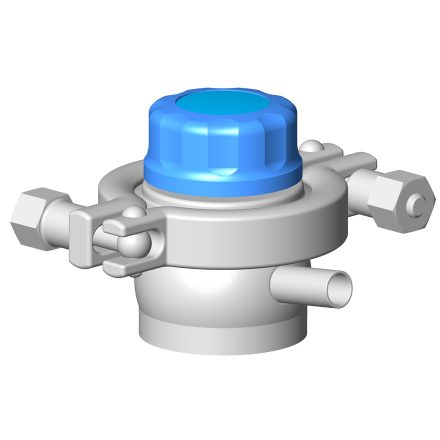

DMX DMAX diaphragm valve

The DMX DMAX diaphragm valve allows for retention free flow and a constant flow diameter. Its design, integrating a physical barrier between the interior of the valve and the external environment, makes for a valve particularly adapted to the pharmaceutical industry.

  • 3A
  • ATEX
  • CE
  • FDA

The benefits

Simple and fast maintenance thanks to clamp collar subassembly

No pressure drop, thanks to constant flow diameter

Hygienic design with smooth body profile

Physical barrier avoiding any risk of contamination

The product features

From DN 8 to DN 51

  • SMS, DIN or US version.

4 levels of internal finishes

  • Standard
  • Internal polish
  • Internal and external finishes
  • Electropolish.

Clamp assembly

  • Fast disassembly and modification of the operating devices
  • Centering and homogeneous tightening of the diaphragm.

FDA 3A certified diaphragm

  • PTFE composite diaphragm
  • Inert to cleaning solutions (CIP), solvents, essential oils.

Mass-machined body

  • Possible sterilization up to 140°C
  • Body profile without retention zone.

Visual leak indicator

  • In case of diaphragm failure.

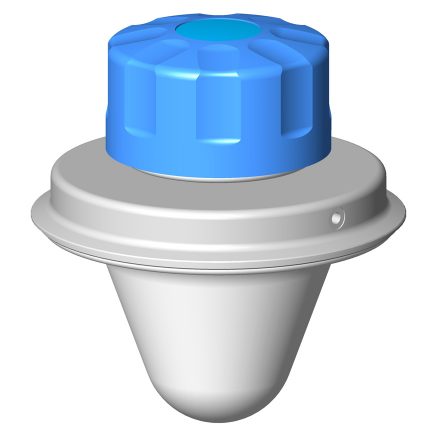

Ergonomic handle

  • Plastic material PBT, offering high resistance against chemical agents up to 130°C
  • Stainless steel version, optional.

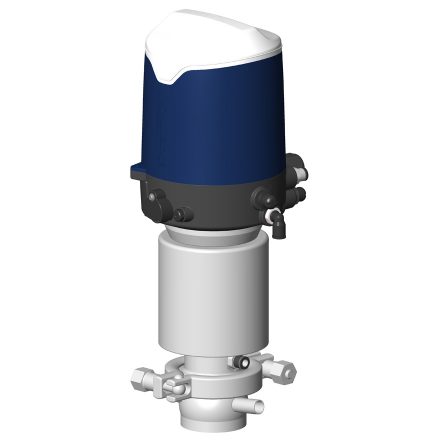

Compact dismantable actuator

  • Easily transformed into Normally Open NO, Normally Closed NC or Double Acting DA.

CAD 3D 2D ePortal

Go to our symbols Library 2D or 3D, available in all CAD formats 2D, 3D, native or neutral. Select and download the symbols from our online configurator.

Application domains

Cleaning products | Pet/Animal Food | Pharmaceutics | Cosmetics | Babyfood | Food industry

Cleaning products

We propose various ranges of products that adapt to local cultures and to chemical and hygienic constraints. It is the guarantee of a high level of reliability, an essential challenge in the sector and a decisive argument for consumers.

Pet/Animal Food

Because the wellbeing of their pets is the center of interest to their owners, the quality of our products must be at the center of our thinking. Supporting our customers in pet food production allows them to comply with the demands of the market


The Pharmaceutical market requires a strict control of the production line, at the same time being efficient and secure. In this extremely demanding sector, rigor is required, thus, the absence of retention zones of our products in the processes.


In a costly market in terms of production and consumption, it is fundamental to avoid wasting resources. Notably, thanks to our pigging solutions and our long lasting leakproof products, we supply you with the tools needed to reach optimum productivity.


Thanks to the hermetic properties, complying with qualificative hygiene and security standards, of our range of aseptic valves, your production line will be assuredly performant. Because our babies and toddlers deserve quality products.

Food industry

Our different range of products are designed to cover a vast array of food processes. Our valves are designed to last for today and tomorrow; with the aim of healthy food and quality for everyone.


Definox offers a range of services to support and advise you; spare parts management, valve retrofitting, personalized follow up program for valves and intervention schedules, valve maintenance training or even testing on our test bench. As many services to fit your needs.
