If you are looking for documentation, go to our Document Library

Filter by valve type

Sampling valve

Volumetric sampling valve

Sampling valve

Manual sampling diaphragm valve DMX PE 2 outlets

DMX PE DMAX PE diaphragm sampling valve

The sampling diaphragm valve DMX PE and DMAX PE integrate a physical barrier between the interior of the valve and the external environment. The sample is taken under optimum aseptic conditions.

See the product

Manual sampling valve PEX2 sterilization by liquid circulation wall welded connection

PEX PEAX sampling valve

The PEX PEAX sampling valve allows for safe, easy sampling using various sterilization methods: by flame, circulating a cleaning product, or steam injection. Their modular design and numerous connections allow them to adapt to all configurations.

See the product

Volumetric sampling valve

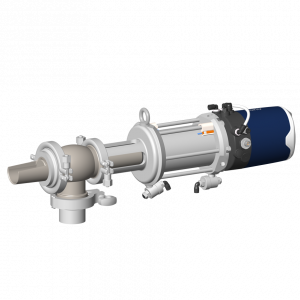

Volumetric sampling valve PEV with Sorio control top

PEV volumetric sampling valve

In order to facilitate powder sampling from drying silos, Definox offers a volumetric sampling valve. The powder flow is gravity discharged. It allows for repeatability of the sample taken from a given volume or frequency.

See the product
