Filter by valve type

Specific butterfly valve

Specific shut off valve

Specific butterfly valve

Automatic flush butterfly valve DPAX with Sorio control top

Butterfly valve for powder transfer

This butterfly valve is used for transferring powders from tanks to the process lines and conversely from the process lines to the tanks. Fitted with a special flange, they integrate easily.

See the product

Specific shut off valve

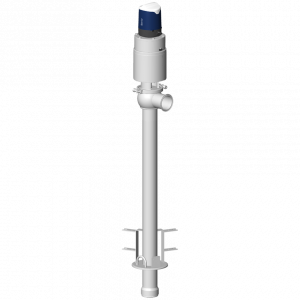

Shut-off valve DCX3 with plunging cane

DCX3 dosing valve with plunging cane

The dosing valve with plunging cane allows for filling or withdrawing of large volumes of liquid. Two plug positions ensures small and large flow.

See the product

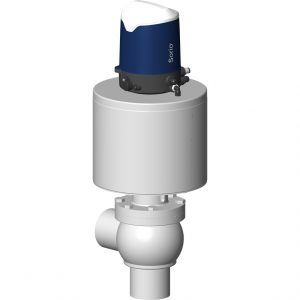

High pressure shut-off valve L body with Sorio control top

DCX3 HP high pressure shut-off valve

The high-pressure valve is adapted to circuits with pressure levels higher than 20 bars. It is designed following the European Pressure Equipment Directive CE97/23/CEE. Disassembly operations are secured in compliance with the fundamental demands of this European Directive.

See the product

Tank bottom shut-off valve DCX3 FC for powder application with Sorio control top

Tank bottom shut-off valve for powder application

In order to facilitate filling powder into tanks, Definox offers a variant of the single seal tank bottom shutoff valve. Powder is introduced into the depressurized tank by suction.

See the product
