AVX1 sanitary safety air vent

The autonomous sanitary vent AVX1 ensures protection against vacuum and overpressure of inert tanks (sterile air or neutral gas).

  • CE
  • FDA

The benefits

Modular, hygienic design

Optimal cleaning thanks to the plug lifting

No retention zone

High resistance against thermal shock

Drop channeling

Easy maintenance thanks to clamp subassembly

The product features

DN 100 – 150 – 250

FKM standard sealing

  • EPDM or VMQ, on request.

Pressure valve setpoint range

  • 0.05 to 0.4 bar.

Overpressure in the tank

  • Preset plug with stainless steel spring or load.


  • Preset plug ensuring an immediate full opening during the vacuum.
  • Vacuum of the pressure valve: 5 mbar.

Additional modules, optional

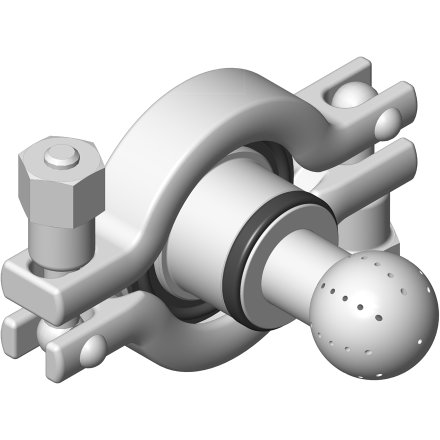

  • Ball cleaning

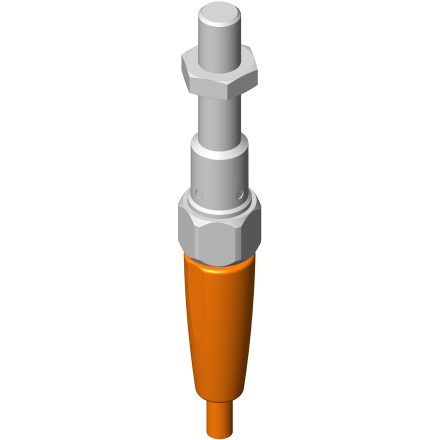

  • Detection of vacuum plug
  • Insect filter

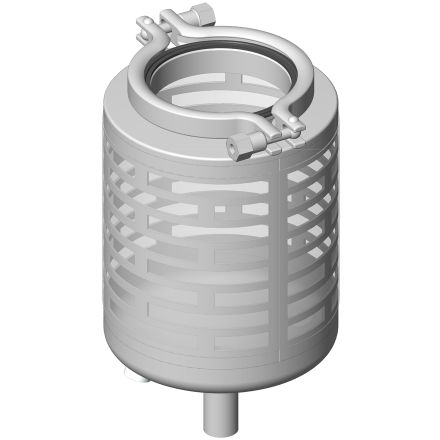

  • Drip tray

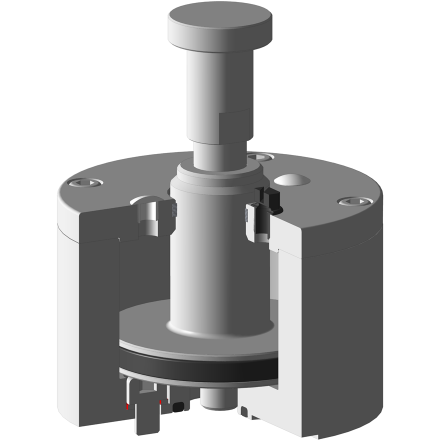

  • Pressure valve control

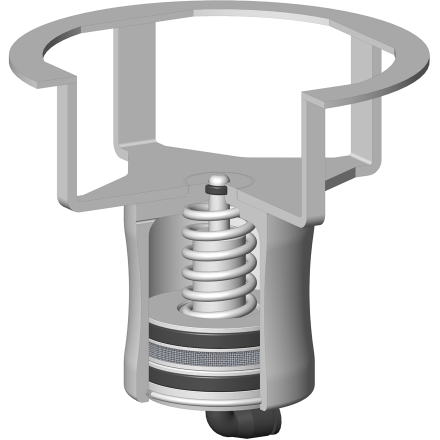

  • Lifting of vacuum plug
  • Sterile air connection

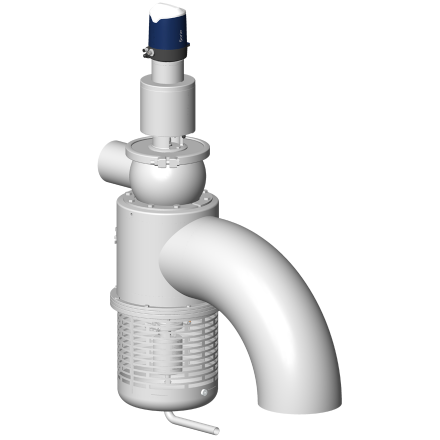

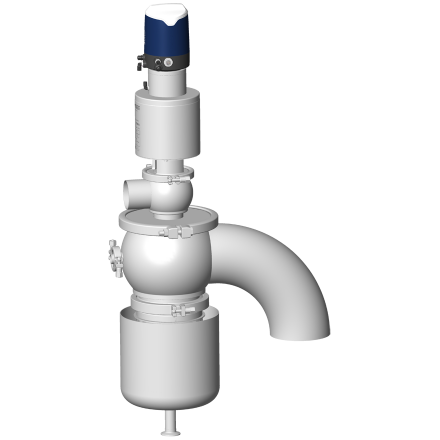

  • Control top.

More options

  • Thermal cover
  • Electrical tracing.

CAD 3D 2D ePortal

Go to our symbols Library 2D or 3D, available in all CAD formats 2D, 3D, native or neutral. Select and download the symbols from our online configurator.
