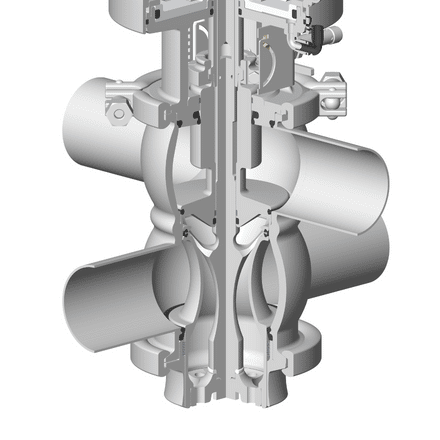

VEOX PMO double independent plugs mix-proof valve

The new VEOX PMO mix-proof valve, with double independent plugs and no product loss when opening, meets the 3A recommendations (85-03) in accordance with dairy sanitary requirements. The physical break between two circuits allows two different liquids to flow through the valve without the risk of cross contamination.

  • ACS
  • ATEX
  • CE
  • FDA
  • 3A

The benefits

No risk of mixing between two different fluids, thanks to a physical break

Reliable and smart hygienic design guaranteeing the integrity of the manufactured products

Optimal resistance against high linear stress

Higher flexibility and availability of the lines, no stop in production during cleaning operations

No cross-contamination during plugs lifting, thanks to the double security (plug profile integrating deflectors + optimal dimensioning of the leakage chamber)

Easy and complete maintenance of the valve and its actuator

The product features

From 1″ to 4″ US

One-piece mass-machined plug and body

  • Body thickness 6 to 7 mm
  • Guaranteeing high resistance against mechanical and thermal stresses.
  • One-piece component avoiding liquid retention zones.

Indicator leak

  • Warning about a possible leakage failure between the two plugs.

Smart designed plug integrating deflectors

  • Guiding the flow to the center of the leakage chamber while avoiding contact with the plug seat.

Oversized leakage chamber

  • Allowing possible drainage from leaks, without pressure inside the leakage chamber.

Sliding radial seal with stainless steel insert

  • Ensuring a perfect seal during valve operations
  • Preventing any loss of process product.

Powerful and fully dismantable actuators

  • Immediate response for each movement of the plugs
  • Easily transformed Normally Open NO, Normally Closed NC or Double Acting DA.
  • Breakaway actuator for the lifting of the lower plug.

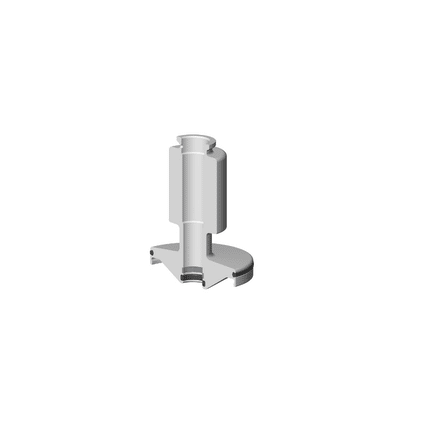

Solid machined counter balancer

  • Offering great resistance against water hammers
  • Cleaning of the outer face of counter balancer with each movement of the lower plug
  • Ensuring perfect cleaning for sticky applications, avoiding long-term clogging.

WHAT MAKES THE DIFFERENCE

30%

reduction in cip loss during plug lifting

30% max

SPARE PARTS REPRESENTING 30% of the global value of the valve for 5 YEARS

25 minutes

to realize the maintenance of the shut-off unit

HOW DOES VEOX PMO MIX-PROOF VALVE WITH SORIO CONTROL TOP WORK
