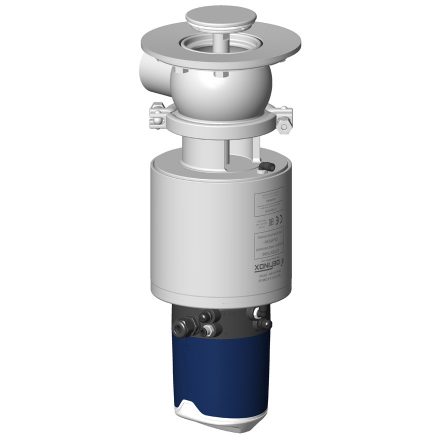

DCX3 FC tank bottom single sealing shut-off valve

Fitted with a mass-flange, the DCX3 tank bottom valve is used for isolating the tank from the process during emptying or filling of the tanks.

  • 3A
  • ATEX
  • CE
  • FDA

The benefits

Optimum cleaning thanks to PFA floating seal

Reduced pressure drop

Leaktightness as close as possible to tank wall without retention zone

Easy maintenance thanks to clamp disassembly

Adapted to fluids with particles or fragile, thanks to the complete clearance of the plug

High resistance against expansion stresses

The product features

From DN 25 to DN 100

  • SMS, DIN or US versions.

One-piece plug, with PFA floating seal

  • Surdy design avoiding risk of breakage or unscrewing.

Flange connection to tank to be welded

Elastomer sealing

  • EPDM or FKM
  • Adapted to fluid with particles or abrasive.

2 versions

  • Rising plug
  • Lowering plug

Mass-machined spherical body

  • T or L body.

Metal metal lowering version, on request

Manual version

Dismantable actuator

  • Easily transformed Normally Open NO or Normally Closed NC.

Long stroke actuator

  • Ensuring the complete clerarance of the plug
  • Protecting the fragile fluids or fluids with particles.

One-piece plug and flange, optional

  • Sized specifically to the tank bottom.
