- Isolation valve

  Isolation valve
  Plug valve Butterfly valve Ball valve

  Isolation valves are often associated with another function, depending on the type of seal (all elastomer, diaphragm, metal to metal), the intended usage of the valve (sampling, adjusting, protecting other parts) but also the environment in which it is used (aseptic, explosive…). The main isolation usage consists in isolating the entire line, or a part of the fluid flow process, by totally closing off the liquid flow. The choice of the valve is made in function to the material wanted, the diameter in relation to the lines they will be installed on, as well as the conditions of use and cleaning.
- Divert valve

  Divert valve
  Divert valve

  A divert valve is used for directing the flow in a given direction. It allows the flow to be stopped in the upper or lower valve path or allows the flow to run freely along both paths. The choice of body configuration is related to the geometry of the process lines. The Definox range of valves allows for every useful valve body configuration, for the widest possible utilisation. For independent double plug valves, there are more than twenty standard configurations available. Added to that is a stepped and 3-body version that allows for increasing the number of combinations.
- Mixproof valve

  Mixproof valve
  Double independent plugs Double sealing shut-off and divert valves Double sealing butterfly valve

  Used for optimizing the production line utilization rate, these single or independent double plug valves allow for exploiting the lines with an optimal sanitary protection level. The mixproof valve has an integrated leak chamber, able to detect a seal failure while avoiding the risk of cross contamination. Independent double plug valves permit the safe mixing of two different fluids. The independent opening and closing of the valve ensure a thorough cleaning of the valve without opening it.
- Aseptic valve

  Aseptic valve
  Shut-off and divert aseptic valve Aseptic diaphragm valve

  The seriousness of the sanitary conditions of some processes or manufactured products calls for aseptic valves. The Definox aseptic valves have either a physical barrier between the interior and exterior of the valve, or a built-in device for sterilizing the valve components in contact with the exterior. Steam flash sterilization, alcohol barrier, PTFE diaphragm, there are as many varieties as processes and manufactured products.
- Sampling valve

  Sampling valve
  Sampling valve Volumetric sampling valve

  Sampling consists of removing a quantity of liquid to verify its aspect, its composition or its quality. Before sampling, the sampling devise needs to be sterilized (sterilization in line by cleaning products or steam flashing or flame sterilization of valve paths). Most often installed on tanks or filling pipes, the sampling valves PEX PEAX embed easily thanks to their multiple connections and allow to collect fluids from the most liquid to the most viscous.
- Protecting device

  Protecting device
  Plug device Shut-off valve Top tank protecting devices

  To protect peripheral equipment, notably from over-pressure or under-pressure that might occur during the process, it is strongly advised to install protective devices. These protective devices enable either pressure relief or the right allowance for under-pressure.
- Tank equipment

  Tank equipment
  Tank bottom shut off valve

  Tanks can be fitted with diverse parts or valves depending on their function (storage, fermentation, blending, etc.). Valves adapted for tank usage enable transfer operations, cleaning or sampling. These parts are the guarantee of protection, either when empty or under pressure.
- Regulating valve

  Regulating valve
  Regulating plug valve

  Regulating valves enable precise output adjustment. They can be used for controlling a filling level, additive dosage or adjusting a blending temperature. Fitted with seals they also work in isolation. It is therefore possible to progressively start or stop the flow to limit jumps and jolts without adding extra valves. In line with the flow rate we define the geometry of the plug most adapted to your needs. The dedicated actuator positions and adjusts the valve opening and waits for the required flow rate.
- Specific valve

  Specific valve
  Specific shut off valve Specific butterfly valve

  Definox is known for its ability to design personalized equipment adapted to modern sanitary processes. Using client spécifications, our sales team, supported by our integrated Design and R&D department, study the best solutions adapted to the constraints on production and cleaning. Our industrial flexibility contributes to the manufacturing of made to measure assemblies or specific valves conforming to our clients demands.
- Controlling and signaling

  Controlling and signaling
  Control top

  The choice of equipment for controlling and signaling dépends on the overall installation, the safety level necessary and the feedback needed. Definox control tops ensure the control and command of valves from a distance. They send a real time alert of any possible malfunction for an immediate intervention. The newest generation of control tops on offer from Definox are equipped with the latest technologies in terms of interconnectivity and features. Definox valves can also receive other simple signalization devices.
- Pigging system

  Pigging system
  Pigging station Accessories and devices for pigging systems

  During the transfer cycle, production lines can stock up an important quantity of residual product. The pig is pushed through the pipe by a fluid. The pigging solutions STARMOTION are modular and adapt easily to different process types. For specific environments or on applications needing adaptations (version double envelope, configuration double pigs), Definox's solutions are personalized almost to infinity following the customer's spécifications.
- Manifold or valve fitting assembly

  Manifold or valve fitting assembly
  Manifold or valve fitting assemblies

  The valve manifolds are essential elements for managing flow and are the link between the treatment Equipment, storage or transformation areas, and cleaning stations.
- Injection system

  Injection system
  Injection system

  To satisfy the consumer, manufactured products come in endless varieties with more and more features, colors and flavors. The injection of concentrated flavors or colorants in the base product is a common procedure. These often-costly additives must be precisely dosed. The Starwheel or Starmanifold injection ssytems simplify the injection. By injecting these additives during transfer phases, the creation of batches becomes easier and making variants is faster. Productivity of the lines is optimized.
Services
Group
Careers
Resources

Contact DEFINOX

If you are looking for documentation, go to our Document Library

ATEX

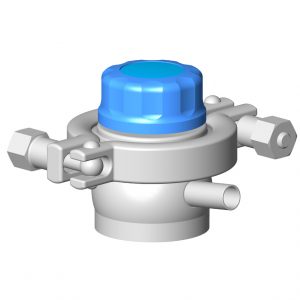

Manual diaphragm valve DMX

DMX DMAX diaphragm valve

The DMX DMAX diaphragm valve allows for retention free flow and a constant flow diameter. Its design, integrating a physical barrier between the interior of the valve and the external environment, makes for a valve particularly adapted to the pharmaceutical industry.

See the product

Mixproof valve VDCI MC with double indpendent plugs and Sorio control top

VDCI MC mixproof valve double independent plugs

The double independent plugs mixproof valve VDCI MC integrates a physical barrier between two circuits. This technology allows the visualization of any possible leaks and authorizes the independent flow of two different liquids in complete security.

See the product

Shut-off valve DCX3 DE double sealing 2 indicators L body with Sorio contro top

DCX3 DE double sealing shut-off valve

The double sealing valve DCX3 DE can detect potential leaks between two isolated zones, thanks to an airlock system. It is an alternative to independent plug valves with a leakage chamber.

See the product

Shut-off valve NEOS double sealing 1 indicator T body with Sorio control top

NEOS double sealing shut-off valve

The double sealing valve NEOS with leak detection is particularly adapted to CIP applications.

See the product

Divert valve DCX4 DE double sealing 1 indicator LL body with Sorio contro top

DCX4 DE double sealing divert valve

The double sealing valve DCX4 DE can detect potential leaks between two isolated zones, thanks to an airlock system. It is an alternative to independent plug valves with a leakage chamber

See the product

Butterfly valve DPAX DE double sealing between flanges with Sorio control top

DPAX DE double sealing butterfly valve

This valve associates two automatic butterfly valves connected by a sleeve serving as a chamber.

See the product

Divert valve DCX4 single sealing TL body with Sorio control top

DCX4 single sealing divert valve

The single seal valve DCX4, designed to respond efficiently to the demands of the market in both cleanability and functionality, comes equipped with a PFA floating seal.

See the product

Fractional divert valve DCX4FRACT LL single sealing body with Sorio control top

DCX4 FRACT fractional divert valve

The small size single seal valves are leakproof under high-pressure. They fit the Starmotion pigging system and the injection system Starwheel.

See the product

Manual DBX ball valve

DBX DBAX ball valve

DBX DBAX ball valves complete the range of Definox sanitary process valves. These valves are suitable for auxiliary lines.

See the product

$Automatic fractional shut-off valve DCX3 FRACT T body with Sorio control top$

DCX3 FRACT fractional shut-off valve

The small size single sealing valves are leakproof under high-pressure. They fit the Starmotion pigging system and the injection system Starwheel.

See the product
