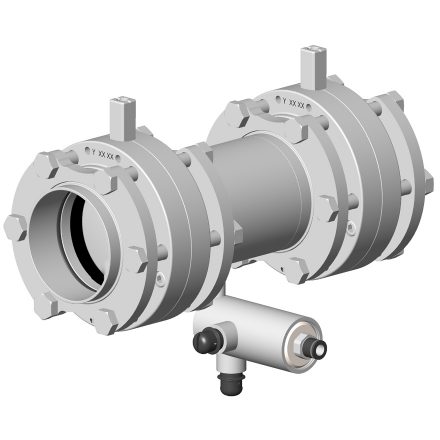

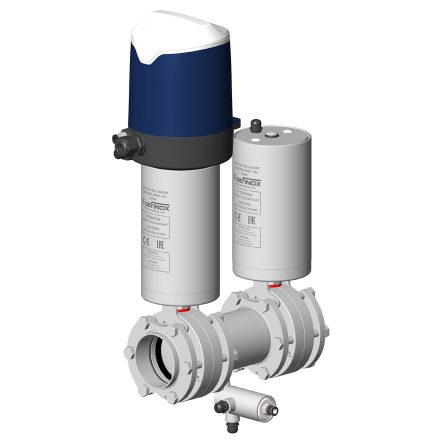

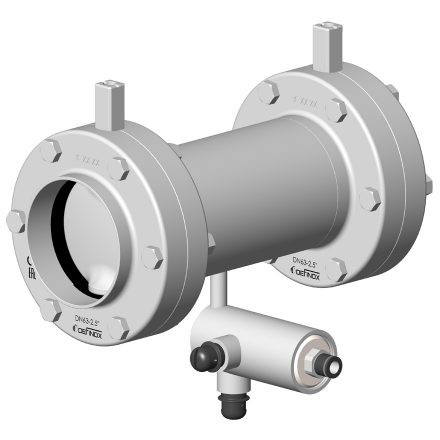

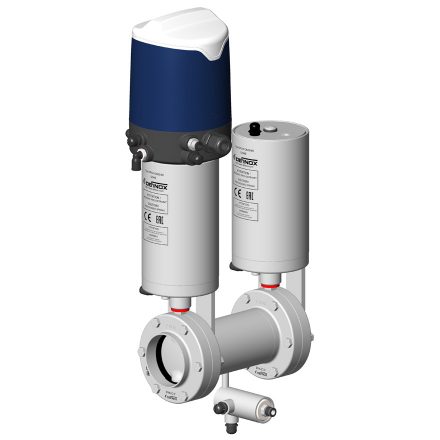

DPAX DE double sealing butterfly valve

This valve associates two automatic butterfly valves connected by a sleeve serving as a chamber.

  • ATEX
  • CE
  • FDA

The benefits

Low cost leak chamber valve

Non-contamination of a circuit by the other one

Chamber rinsing during cleaning phase

Fast assembly and disassemble

The product features

From DN 25 to DN 150

  • SMS, DIN or US versions.

Compact flanges

  • Fast and simple disassembly.

Butt weld version

Use on numerous applications

  • EPDM
  • FKM
  • HNBR

Flow on line without retention

2 automated butterfly valves

  • Linked by a sleeve acting as a chamber.

Leak microvalve

  • Enabling any fault on one of the valves to be visualised.

Cleaning microvalve

  • Allowing the cleaning of the chamber.

CAD 3D 2D ePortal

Go to our symbols Library 2D or 3D, available in all CAD formats 2D, 3D, native or neutral. Select and download the symbols from our online configurator.
